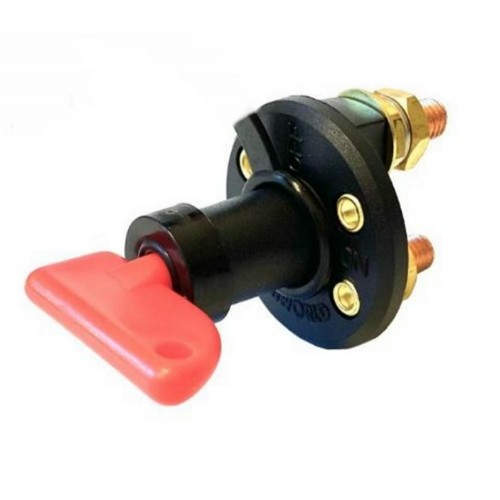

Single Battery Switch with Key - 30040

Single Battery Switch with Key - 30040

Basic battery isolation switch intended for isolating a single battery. Can also be used for controlling high current devices such as winches, capstans etc.

Removable key adds security. 12-24 VDC, 500 amp momentary and 75 amp continuous

Continuous rating is 75Amps

• Maximum Voltage: 32 Vdc
• Maximum Surge Current: 500Amps for 10 seconds @ 12Vdc
• Maximum continuous current: 75Amps @ 12Vdc
• Dimensions: 75mm x 60mm diameter
• Terminal Stud Diameter: 10mm
