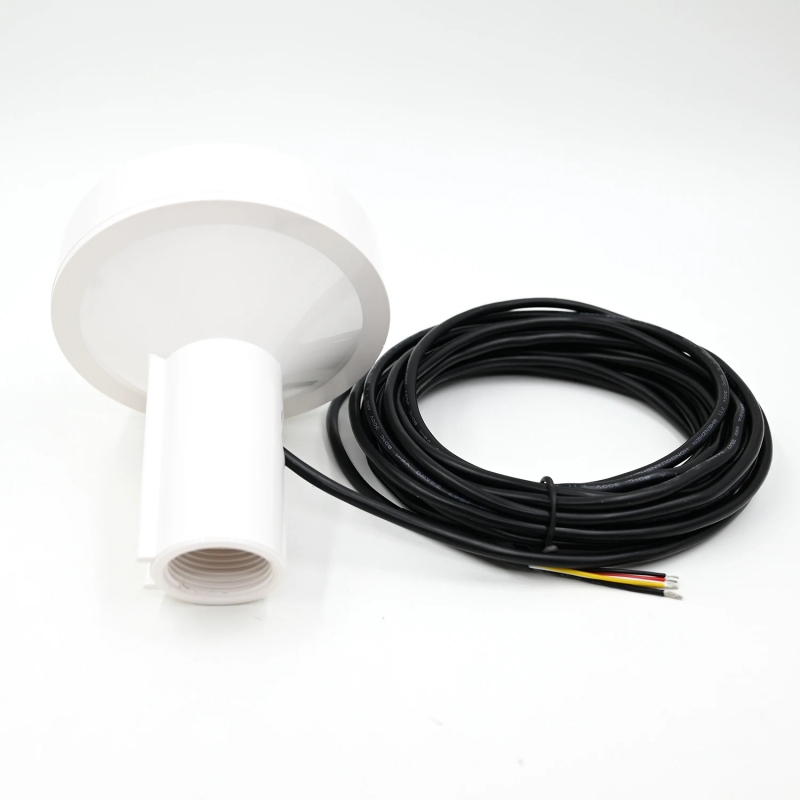

KME R70L NMEA0183 GPS Antenna

KME R70L NMEA0183 GPS Antenna

R70L is a smart “all in one” GPS receiver solution ideal for replacing GPS antennas on legacy systems such as Raymarine Pathfinder or C-Classic where the original has failed, or DSC VHF's with only an NMEA0183 position source.

GPS data is output in NMEA 0183 format (4,800 baud).

The NMEA message includes: GGA RMC VTG GLL GSA GLL ZDA.

Specifications

Chipset：UBX NEO-7N

Support Frequency：GPS L1,SBAS L1,QZSS L1

Configure：Default GPS+SABS+QZSS

Channels：56 Searching Channel

Horizontal Accuracy：2.0m CEP SBAS Enable (Typical Open Sky)

Time Precision：1us synchronized to GPS time

Speed Accuracy：0.05m/sec 95% (SA off)

Tracking ：-167dBm

Reacquisition：-160dBm

Cold start：-148dBm

Hot Start：26s

Warm Start：2s

Cold Start：1s

Support Rate：Default 4800bps

Data Level：RS232

Data Protocol：NMEA0183

NMEA Message：GGA RMC VTG GLL GSA GLL ZDA

Update Rate：Default 1HZ

Flash：4M Flash

Altitude：＜50000m

Velocity：＜515m/s

Acceleration：＜4G

Voltage：7-28V,Typical:12.0V

Current：20mA/12V

Dimension：D10.5cm*H16cm

Weight：400g

Cable Length：5 meters

Operating Temp：-45℃-+85℃

Storage Temp：-45℃-+85℃

Waterproof Level：IP67
